Pneumatic Equipment (part1)

compressed-air hydraulic comparison

units

1 bar = 0.1 N / mm2 = 10 N / cm2
1 Pa = 1 N / m2
1 bar = 100 kPa

1 mbar = 1 hPa

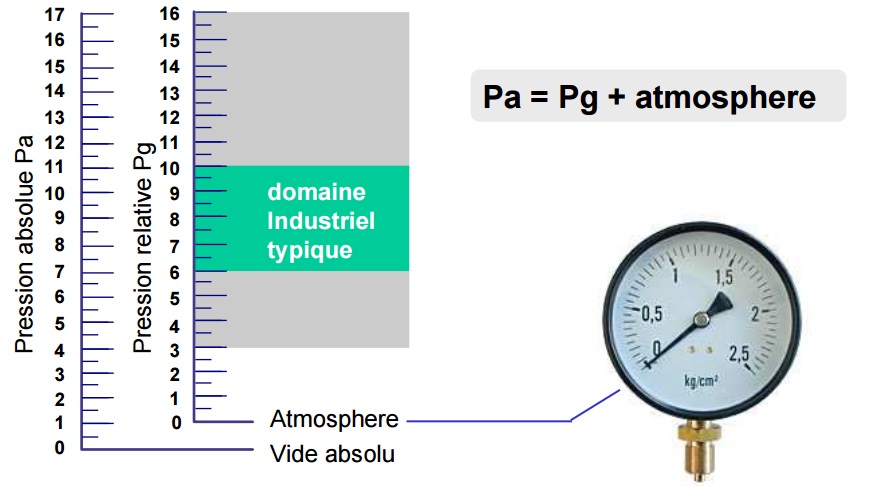

Industrial area

Compressed air production

         The production of compressed air has resulted in:
reduce the temperature (heating of a compression)
remove water (RH + cooling) and
solid (lubricating oil, dust in the air)
Ensure operating pressure

and possibly add lubricant

typical compressor installation average height

Distribution


Local airy compressor
and place on a facing wall
north ... and the intake filter

away from sources of pollution




Components and Symbols

actuators
1 attached

2 magnet
3 amortization
4 body
5 level
6 wiper seal
7 flange
8 inlet
9 end of race
10 piston rod
11 carrier ring
12 piston seal
13 flange

14 depreciation
